The PM-1C boasts a small footprint, low energy consumption, and high-quality construction. It has a two-stage injection unit — extruder/accumulator — furnished with bimetallic barrels and long-life feed screws. The hybrid machine is controlled by a Beckhoff PLC and actuated by Rexroth hydraulic components. A classic structural foam multi-nozzle injection manifold is an available option.

Believed to be the lowest cost US-made machine of its type, the PM-1C is priced to compete with Asian-built injection machines of comparable capacity. It more than competes with such machines from a pallet-cost standpoint and produces an excellent ROI for both contract and captive molders, said Wilmington’s information.

The Lumina Pallateer Model PM-1C comes standard with a 350-ton press capable of molding pallets up to 48 x 52 inches in size and weighing up to 40 pounds. Its HDPE melting capacity of 1200 pounds per hour is sufficient to produce 30 pallets per hour. Hot runner molds, robots, and other accessories are available from Wilmington.

In this conversation, Pruitt sheds light on how these developments not only refine the functionality of diabetes management devices but also pave the way for broader industry impact. Discover how Accumold's approach is setting new standards in medical device manufacturing and what it means for the future of wearable health technology.

In this interview with A.J. Pruitt, Technology Manager at Accumold, we delve into the company's groundbreaking advancements in micro molding technology, specifically focusing on thin-walled cannulas. These innovative cannulas are transforming wearable diabetes devices by offering enhanced precision, comfort, and reliability for users. Accumold's successful shift from traditional extrusion methods to advanced micro molding techniques addresses longstanding challenges in cannula production, such as high fallout rates and costly secondary processes.

Until she retired in September 2021, Clare Goldsberry reported on the plastics industry for more than 30 years. In addition to the 10,000+ articles she has written, by her own estimation, she is the author of several books, including The Business of Injection Molding: How to succeed as a custom molder and Purchasing Injection Molds: A buyers guide. Goldsberry is a member of the Plastics Pioneers Association. She reflected on her long career in "Time to Say Good-Bye."

The Lumina Pallateer Model PM-1C from Wilmington Machinery accepts 100% recycled plastics even in flake form, enabling the production of low-cost plastic pallets.

Please enter your email address and create a password to access the full content, Or log in to your account to continue.

A new low-pressure plastic-pallet injection molding machine from Wilmington Machinery accepts 100% recycled plastics even in flake form. That enables the production of low-cost plastic pallets, noted the company.

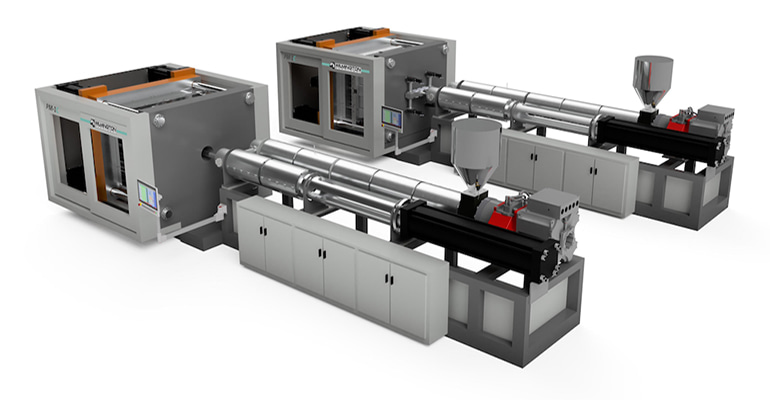

The compact pallet injection molding machine features low energy consumption and high-quality construction. Image courtesy Wilmington Machinery.

The new Lumina Palleteer PM-1C joins the Wilmington lineup of horizontal and vertical machines with press capacities to 2500 tons, injection capacities to 300 pounds, and melting capacities to 6,600 pounds per hour.
