Oertli Instruments sees its mission in the development and production of surgical platforms, instruments and consumables for ophthalmology surgery, according to Malte Heuer, a project lead in vitrectomy surgery at Oertli. He says the company has always committed itself to consistently high quality and absolute reliability.

“Effectively, when coupled with a high-resolution printing system, the Multiplier can reduce the manufacturing time of a batch produced element by an order of magnitude,” Smilansky said.

When asked how the multiplier differentiates from other similar technology, Smilansky said, “As opposed to vacuum forming, pressure forming provides five times the force per square inch, meaning users are able to achieve much finer details and work with thicker advanced thermoplastics.”

Based in the Hungarian capital Budapest, Euroform was established in 1993 to provide a tool and mould making service from design to production and trialling. Approximately 70 employees fulfil innovative solutions for a range of different injection moulding processes, mainly for customers in the automotive industry.

In the realm of advanced medical device development, Switzerland’s Oertli Instrumente AG has transformed its prototyping and packaging processes by integrating the Mayku Mulitplier pressure former into its 3D printing workflow.

Heuer explains that Oertli experienced some challenges in thinning of the foil in areas with too high ratios (width-to-depth) and bridging in areas of thin gaps.

The company was able to easily integrate the Multiplier into the existing prototyping workflow, preserving key aspects that were already efficient and optimizing those that caused issues, Heuer said. “I still use Solidworks to design the packaging prototype; however, instead of 3D printing a visual prototype to present to the product management team and then outsourcing to the packaging supplier, I 3D print a thermoforming template of the design,” he said. “I then use the Multiplier to create high-fidelity prototypes that I present to the team and testers. All of this can be done within a day.”

The pressure former brings the precision of injection molding to engineers’ benchtops and allows for the creation of isotropic thermoplastic parts with sub-micron details, but also in thick materials, Smilansky explains. “The cost per part and time per part is very low and the repeatability and replicability is very high, meaning users can make single parts or batch productions with high consistency,” he said. “The machine is a great fit when parts need to be made fast from production-grade thermoplastics and really comes into its own when series productions are needed.”

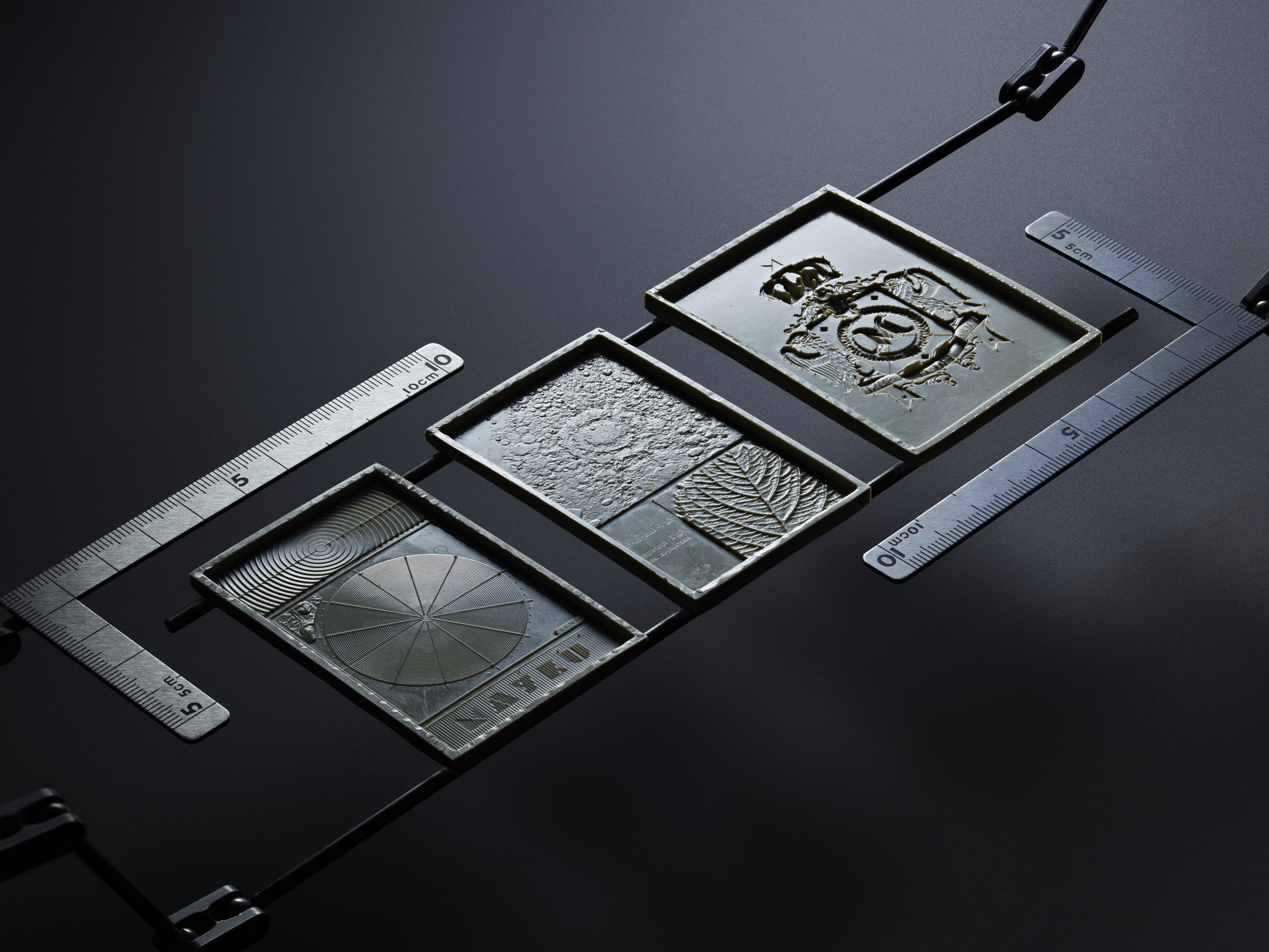

One of the key benefits of a pressure-formed part is that it is made from real production-grade thermoplastic sheets. Because the sheet is precisely formed around a part it maintains isotropic properties, Smilansky explains. In addition, the machine can achieve high repeatability and replicability as the dimensional accuracy remains unchanged from form to form. “Original sheet material properties are also transferred, making the process more suitable to industries and applications relying on specific material grades and properties,” he said.

The R&D team would design the packaging and manufacture a limited visual prototype using FDM 3D printing, he explained. “This prototype wouldn’t have any functionality, as the packaging undercuts that hold the components in place wouldn’t be flexible enough,” he said. “A functional prototype couldn’t be printed with any 3D printing technology due to the reduced wall thickness.”

The machine’s reducing plate accessory simplifies material sourcing and testing by condensing the forming area down to a more widely available A4 or U.S. letter format, extending the range of thicknesses from as low as 0.1 mm to more than 5 mm.

Users can create and store custom profiles for any compatible thermo-formable material. Custom mode also helps increase accuracy by giving engineers extended control over the machine’s heat and pressure capacities.

Once approved by the product management team, Heuer said the design would be sent to the packaging supplier, who would make a prototype in approximately three weeks. The functional prototype would then be shipped back and tested by customers, after which feedback would be gathered. This process would be repeated until the perfect design was found.

Because of the nature of pressure forming, there are some important design considerations to ensure the best results are achieved, Smilansky says. “To get a successful part, users need to design for pressure forming, which means creating parts with no undercuts, that use air vents to ensure air flow around the template, have draft angles on straight walls, and are not taller than they are wide,” he said.

Wolf concluded: "Automated manufacturing and digital processes are essential, given the current challenges in the global marketplace.

“We switched from negative to positive molds to move the functional areas to regions of low stretch,” he explained, “and found the minimal gap size to reduce bridging by manipulating the printed model and then reforming.” He says that the best results are achieved with high-temperature resin printing or filaments such as nylon or Nylon CF. “At this point, we are using standard PLA and discarding the template after a certain number of molds,” he said.

When Euroform ordered the new DMU 100 P duoBLOCK, DMG MORI already had a large pallet handling system in development, based on the smaller, proven, modular PH Cell 300. The bigger capacity automation system handles pallets measuring up to 1,100 mm in diameter, so is able to deploy Euroform's 1,000 × 800 mm pallets. The PH Cell 2000 has twelve pallet positions on two levels and can accept workpieces up to 1,350 mm tall. (Other variants are available with three or four racks housing up to 17 or 21 pallets respectively.)

When the softened sheet is ready, the user brings it down over the template to be formed; up to 60 psi of pressure is then released over the sheet, pushing it into the finest details of the template. The sheet then cools and can be removed for post-processing. Smilansky says the machine is compatible with hundreds of thermoplastics as low as 100 microns thin and above 5 mm thick, and that cycle times are in minutes.

Smilansky adds that when combined with high-resolution 3D printing, the Multiplier pressure former can replicate the level of detail that can be achieved with resin printing in production-grade thermoplastics. “All at a fraction of the cost of outsourcing,” he noted. In addition, because the machine has cycle times that are only minutes long, parts can be replicated fast and accurate series productions are made possible on the benchtop.

To get a successful part, users need to design for pressure forming, which means creating parts with no undercuts, that use air vents to ensure air flow around the template, have draft angles on straight walls and are not taller than they are wide.

Because FDM 3D printing has limitations such as lower resolutions and rougher finishes, it is a less-ideal solution for creating detailed and precise prototypes. Also, because FDM prints are anisotropic, they are prone to breaking along the layer lines.

Prior to introducing the Multiplier into our R&D workshop, we were not able to produce prototypes that resembled the final packaging.

The firm currently uses eight machining centres from DMG MORI for tool production, including DMU monoBLOCKs, an HSC 75 linear and, most recently, a DMU 100 P duoBLOCK with PH Cell 2000 automation system for pallet handling to allow unattended production at night and during the weekends.

As Euroform almost exclusively manufactures one-offs, pallet handling such as the PH Cell 2000 is the optimal solution. Operators set up jobs offline on several pallets using a zero-point clamping system while machining is in progress on another mould, so production downtime is minimal, even at night.

The design iteration process was inefficient, so when Heuer took charge of the medical packaging prototyping at Oertli, he sought a technology that would make prototyping more agile. “A fast Google search looking for desktop, but powerful, thermoforming machines revealed the Multiplier, and I quickly saw its potential within Oertli, so I acquired it from Mayku’s Swiss partner Dim3nsions,” Heuer said.

"With targeted investment in technology and the training and further education of junior staff, we will continue to successfully meet these challenges.”

The pressure former has significantly enhanced Oertli’s prototyping capabilities. “When used in conjunction with our 3D printer, it has extended our workflow towards the production of high-fidelity prototypes, reducing the design iteration cycle from three weeks to just one day,” Heuer said. “It has helped to create prototypes with the needed properties, facilitating better testing and feedback processes.”

Spielman has more than three decades of experience as a writer and editor for a range of B2B brands, including those that cover machine design; electrical design and manufacturing; interconnection technology; food and beverage manufacturing; process heating and cooling; finishing; and package converting.

The DMU 100 P duoBLOCK 5-axis machining centre with PH Cell 2000 pallet storage and handling system on the shop floor at Euroform, Budapest.

Euroform has been using machine tools from DMG MORI since 1995, latterly in a modern factory that it moved into in 2011 and expanded in 2016. Managing Director responsible for day-to-day business at Euroform, Krisztina Zwick, mentioned the supplier's broad machine portfolio and good service: "DMG MORI was one of the first machine tool manufacturers to open a subsidiary in Hungary, which meant that response times were always quick when service was required. Our latest investment in automation was necessary to utilise the machine during unattended shifts, giving us a competitive edge.”

According to Alex Smilansky, Mayku’s co-founder and CEO, the Multiplier pressure former allows users to form a flat thermoplastic sheet around a 3D printed template. First, the machine heats up a sheet of thermoplastic to the required temperature. “The auto-levelling system keeps the sheet level allowing it to get to the precise temperature for optimal forming, giving the user a reliable consistent result every time,” he said.

The Multiplier enables Oertli to create prototypes of pressure-formed thin foil plastic packaging. “Prior to introducing the Multiplier into our R&D workshop, we were not able to produce prototypes that resembled the final packaging,” Heuer said.

As Machine Design’s technical editor, Sharon Spielman produces content for the brand’s focus audience—design and multidisciplinary engineers. Her beat includes 3D printing/CAD; mechanical and motion systems, with an emphasis on pneumatics and linear motion; automation; robotics; and CNC machining.

Another focus that accompanies business development at Euroform is digitalisation. The company has had a paperless working environment for many years, from design through to quality control. The mould maker is an enthusiastic adopter of the digital 'my DMG MORI' app when it comes to online service requests, which Zwick said significantly accelerates the process of calling in a service technician.

"The recent Corona pandemic, the war in Ukraine and high inflation have clearly shown us that we need to develop constantly in order to remain competitive.

Stefan Wolf, Euroform's managing partner said: "We play a pivotal role in automotive supply chains and our work begins in the early development phase of a new vehicle. Technical competence is crucial for exploiting the potential of innovative manufacturing solutions and CADCAM systems."

Five-axis simultaneous machining of workpieces up to 1,100 mm in diameter by 1,600 mm and weighing 2,200 kg had already been carried out on a DMU 100 P duoBLOCK in the factory. Euroform's experience with the machining centre was consistently good, leading to the purchase in 2022 of a latest-generation model with a 1,000 × 1,250 × 1,000 mm working envelope.
